Assign display formats:
Name, Linked property 1, Linked property 2 and Linked property 3 and their
Display unit, Prefix and Suffix.
Define Display Property
1. Enter Name of the display format for the Linked property 1.
2. Click

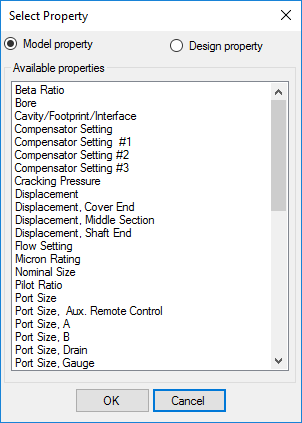

The Select Property dialog box displays.
i. Select Model property/Design property.
Note:
The properties that are marked, Display in drawing,
are visible in the drawing application.
(if you open in the HyDraw CAD application)
ii. Select a property from the available properties.
iii. Click OK to apply and exit.

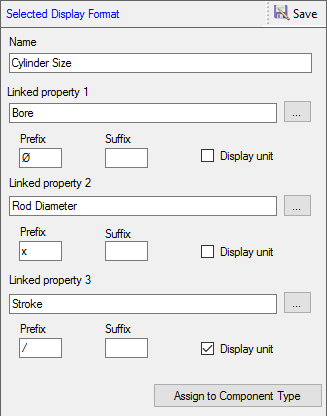

iv. Select Display Unit in the Selected Display Format window, if available.
v. Enter Prefix.
vi. Enter Suffix.
3. Repeat the same procedure for Linked Property 2 and Linked Property 3.
4. Click Assign to Component Type.

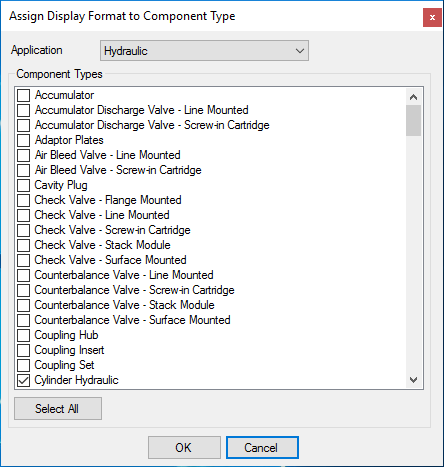

The Assign Display Format to Component Type dialog box displays.
5. Select Application.
6. Select one or more listed component types
7. Click Select All to select all component types.
8. Click OK to apply and exit.
9. Click Save.
