Library Path

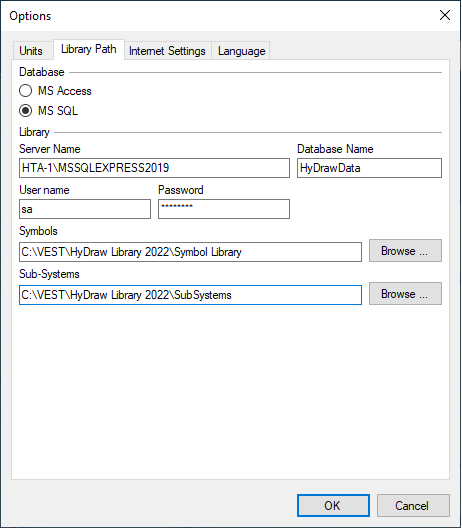

1.      Options dialog box  >  Library Path tab

2.      Select the database type (MS Access or MS SQL).

3.      Enter the necessary information if needed and select Browse… to navigate to the Symbols library in the case of MS SQL or the Data library in the case of MS Access.

4.   Similarly browse for the Sub-systems library.

5.      Click OK.

All the HyDraw Library paths are configured.

Note:

The Library path can be configured to the common network path.
