Create New Model & Link

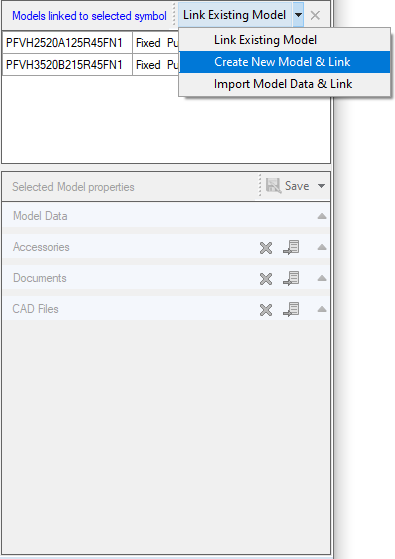

1. Click on the Down Arrow  and Select the Create New Model & Link

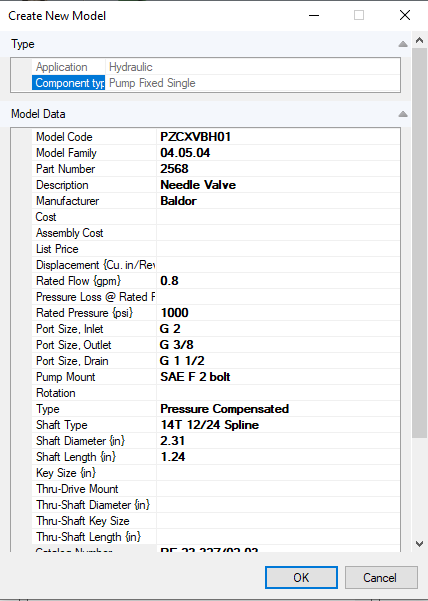

     The Create New Model dialog box displays.







2. Create a new model for the selected symbol and link.

3.  Enter model data, link accessories, documents and CAD files.

4. Click OK to link the selected symbol.
