Create New Child Symbol Library

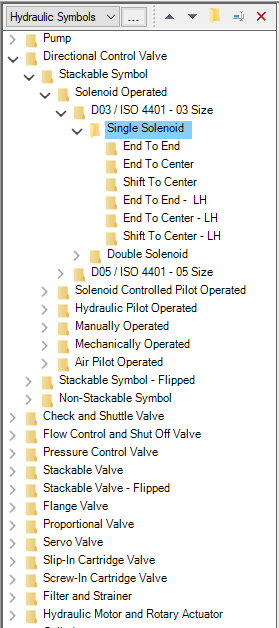

Create a new child Symbol library from any of the three parent libraries: Hydraulic symbols, Pneumatic symbols, and Electrical symbols.

1.      Click .

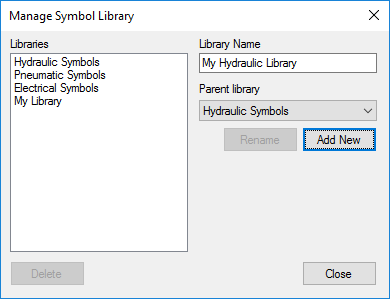

The Manage Symbol Library dialog box displays.

2.    Enter Library Name.

3.    Select the required option from the Parent library drop down:
Hydraulic Symbols/Pneumatic Symbols/Electric Symbols.

4.    Click Add New.

5.    Click Close.

Note:

The user-created libraries can be:

§  Renamed by clicking the Rename button.

§  Deleted by clicking the Delete button.

CAUTION!

The deleted libraries cannot be recovered.
