System Properties

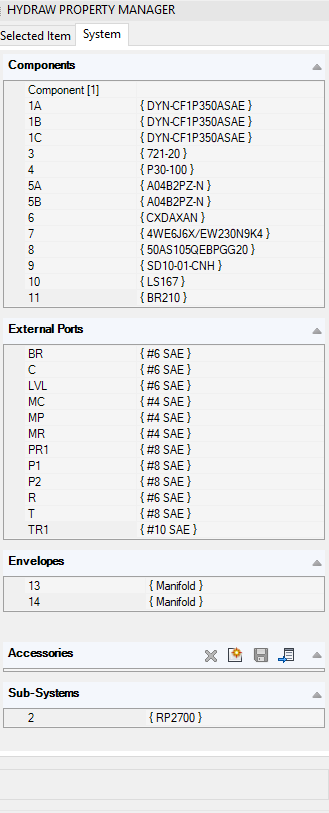

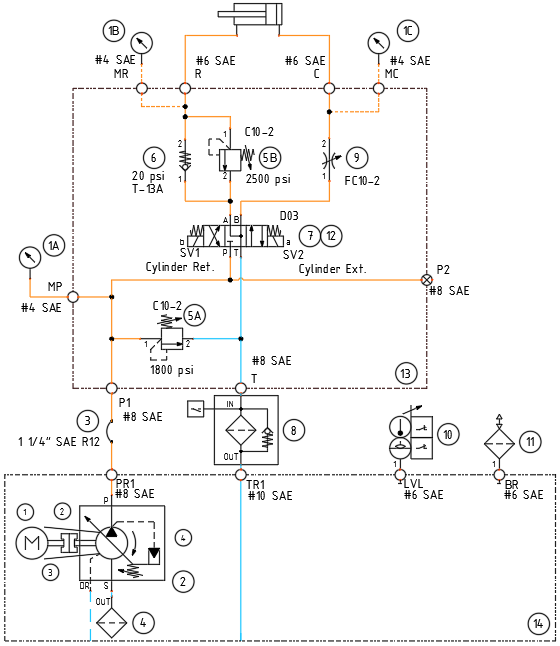

When you open a schematic in the HyDraw^® CAD, the System tab page displays the assigned properties of the selected system in the drawing.

Add new accessories to the system and save in the library.

Components

This section displays the model codes of all the components in the circuit.

Select the Item ID to highlight the corresponding component in the drawing.

External Ports

This section displays the ID and the size of all external ports in the circuit.

Select the Item ID to highlight the corresponding external port in the drawing.

Envelopes

This section displays the ID and the description of all envelopes in the circuit.

Select the Item ID to highlight the corresponding envelope in the drawing.

Accessories

This section displays the details of accessories assigned with the circuit.

Sub-Systems

This section displays the model codes of all sub-systems in the circuit.

Select the Item ID to highlight the corresponding sub-system in the drawing.
