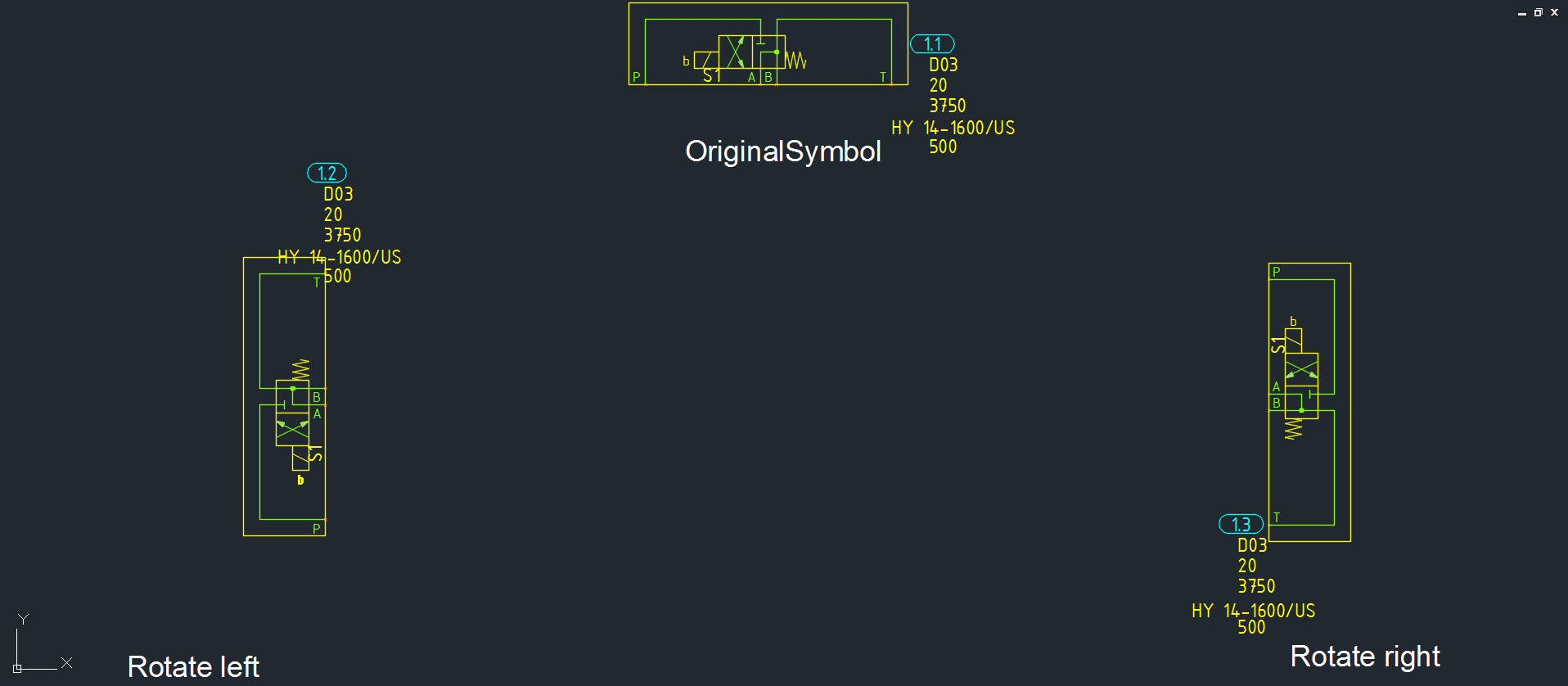

Rotate a symbol, 90 degrees to its left or right. The associated text is constrained to remain horizontal.
Rotate Left
1. Click Circuit > Rotate Left
on the HyDraw® CAD ribbon menu.
The Select Symbols prompt displays.
2. Select a single or multiple symbols.
3. After selection, press the Enter key.
The symbol rotates 90 degrees to its left.
Rotate Right
1. Select a symbol.
2. Click Circuit > Rotate Right
on the HyDraw CAD ribbon menu.
The Select Symbols prompt displays.
3. Select a single or multiple symbols.
4. After selection, press the Enter key.
The symbol rotates 90 degrees to its right.
