Merge Connection

Connect the same type disconnected HyDraw connection lines within specified tolerance.

1.     Click Circuit > Merge Connection  on the HyDraw^® CAD ribbon menu.

The select connections prompt displays.

2.     Select two or more connection lines.

3.     After selection, press the Enter key.

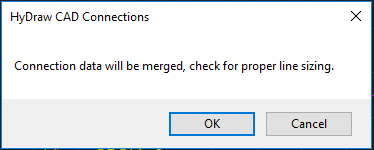

A warning message box displays.

4.     Click OK to continue or click Cancel to exit.

Note:

The same type of collinear connection lines are merged to a single polyline.
