Match the connection properties of one connection line with another.

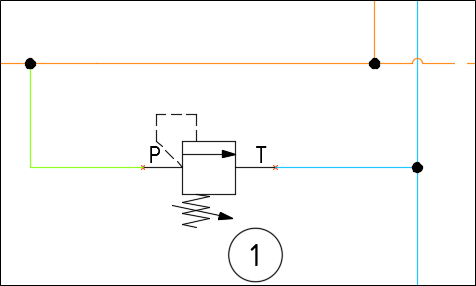

Circuit Before Matching Suction Connection line with Pressure Connection Line
1. Click Circuit > Match Connection
on the HyDraw® CAD ribbon menu.
The Select Source Connection prompt displays.
2. Select the source connection line.
The Select Destination connection(s) prompt displays.
3. Select a single line or multiple connection lines.
4. After selection, press the Enter key.
The connection properties are copied.

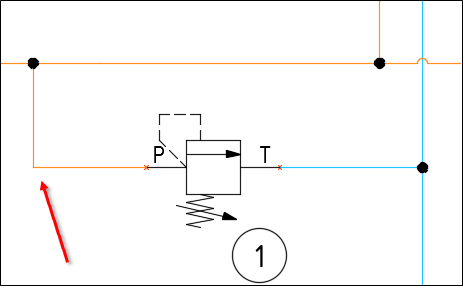

Circuit After Matching Connection
