Build new symbols in HyDraw CAD with an accurate and precise ISO building elements with the library.

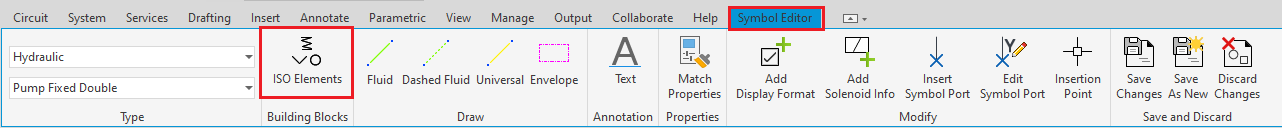

1. ISO Building Blocks dialog is loaded in the Symbol editor menu when creating symbols or editing symbols.

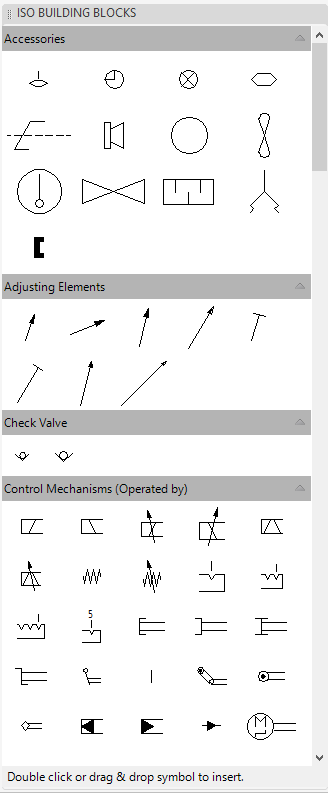

The ISO basic building block elements are structured in logical folders for easy access. This is a dock able window.
2. All the elements are visible up front and is easily scrollable.
The basic building elements are displayed on the right-side window. The description of elements can be viewed on hover.
3. Double-click or drag and drop the basic elements on the drawing space.
4. Position the elements at the right place.
Rotate/flip at the time of insertion.
5. Insert the port names from the Port Names folder.
The Port Name symbol consists of a connection point and port name.
6. On design completion, select the Add New Symbol to bring the newly built symbol into the library.

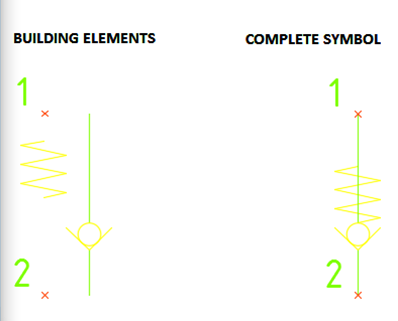

Basic Building Blocks inserted into the drawing space
