Edit Jumping Reference

Modify the jumping reference details in the drawing.

1.     Click Circuit > Edit Jumping Reference icon on the HyDraw^® CAD ribbon menu.
      Or
      Double click to edit the required jumping reference.

The Select Jumping Reference prompt displays.

2.     Select the required jumping reference to modify.

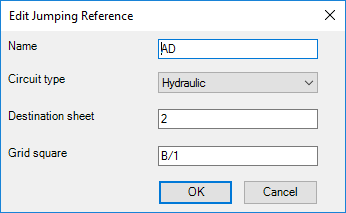

The Jumping Reference dialog box displays.

3.     Enter the required Name of jumping reference.

Select the required Circuit type from the drop-down list if the Use circuit type option is selected in the HyDraw Options > Connection > Jumping Reference.

5.     Enter the required Destination sheet.

Enter the required Grid square if the Use grid square option is selected in the HyDraw Options > Document Settings > Connection > Jumping Reference.

Click OK.

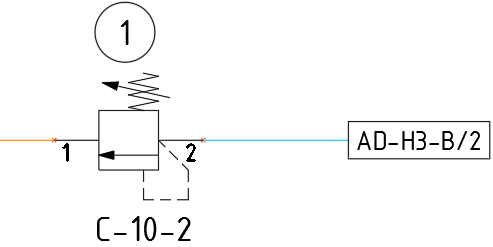

The jumping reference is automatically inserted vertically or horizontally on the unconnected end of a connection line with modified details.

Note:

You cannot modify jumping reference name, when more than one pair of same name exists in the drawing.
