Customize Show/Hide display format in the drawing.

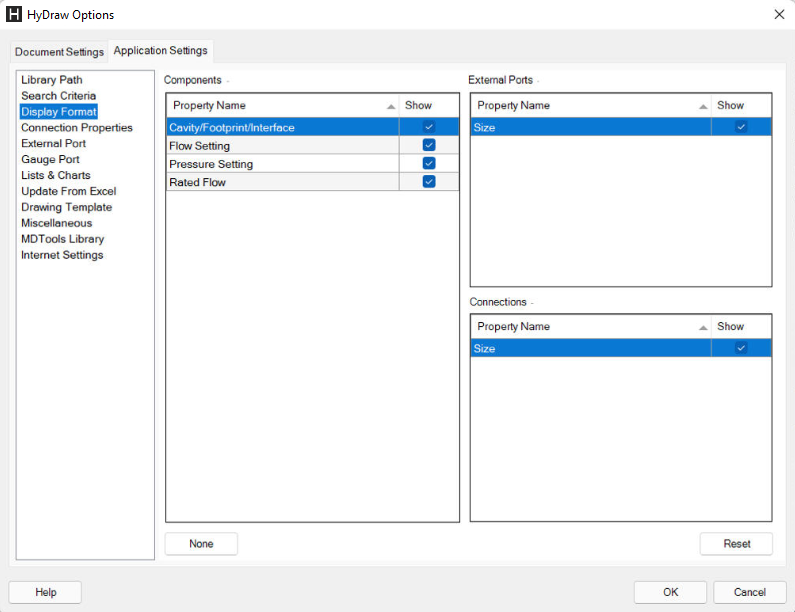

1. Click the Application Settings > Property Display tab of HyDraw Options.
The Property Display tab page displays.
2. Select/Deselect the display properties in following sections, Components, External Ports and Connections.
Click None, to deselect all the display formats of Components, External Ports and Connections to Hide.
Click Select All, to select all the display formats of Components, External Ports and Connections to Show.
3. Click Reset to update the list of display formats from the HyDraw Library database.
4. Click OK to save and exit.
Note:
The space between the displayed properties is automatically controlled.
