Add Solenoid Information

Add solenoid information while creating symbols and editing master symbols in Library.

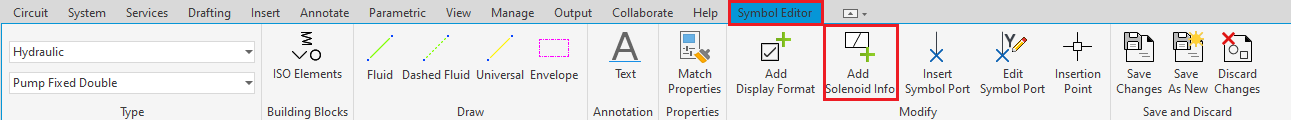

1.     Select Add Solenoid info in the Symbol Editor menu.

2.     Enter Solenoid ID.

3.     Click the position to insert the solenoid ID and function.

 Change the position, if required.

Note

·      To delete the earlier solenoid format from drawing space, select and use delete button from keyboard.

·      Copy and paste the solenoid ID and function to create a new ID and function.
