Add display formats when creating symbols and editing symbols.

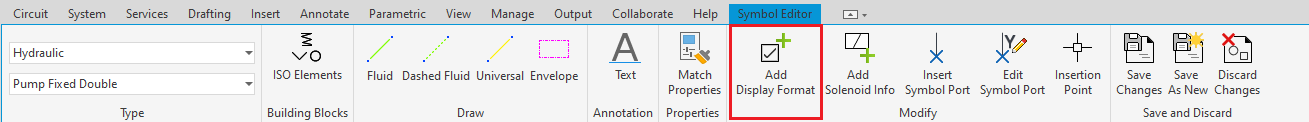

1. To add a new display format, select Symbols > Add Display Format in the Symbol Editor menu.

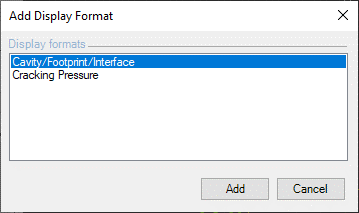

The Add Display Format dialog displays.
The Item type displays automatically according to your selection.
2. Select Application Type from the Symbol Editor menu.
3. Select Component Type from the Symbol Editor menu.
By default, component type of the selected entity populates.
4. Select the available display format and click Add button to add it in drawing space.
Note:
To delete the earlier display format from drawing space, select and use delete button from the keyboard.
