Customize the Actuation Chart format.

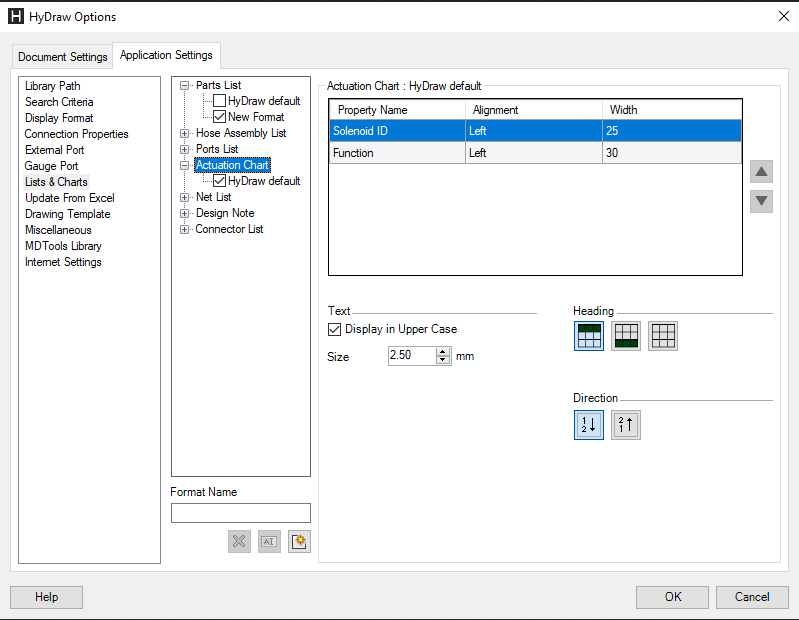

1. Click the Application Settings > Lists & Charts tab of HyDraw Options and select Actuation chart.
The Actuation chart tab page displays.
2. To rename a selected format, type the new name in the text box and then click
.
3. To add a new format, type the new name in the text box and then click
below the textbox.
4. To delete a selected format, click
below the textbox.
5. To move up, select the item and click
.
6. To move down, select the item and click
.
7. Select the required properties and click OK.
Text: The display in Upper Case option shows the list in the upper case. Also, you can change the text size of the list.
Heading: The Heading drop-down selects the list header direction. For example, top, bottom or none.
Direction: Sort the list in an ascending or descending order.
8. Click OK.

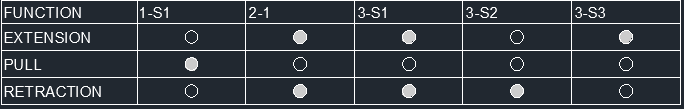

The selected properties are displayed in a tabular form when the Actuation list is created in the drawing.
