Configure text size, envelope line, symbol color, and solenoid naming convention for the US and Europe pattern. Load the HyDraw® Library Explorer and the HyDraw Property Manager at startup.

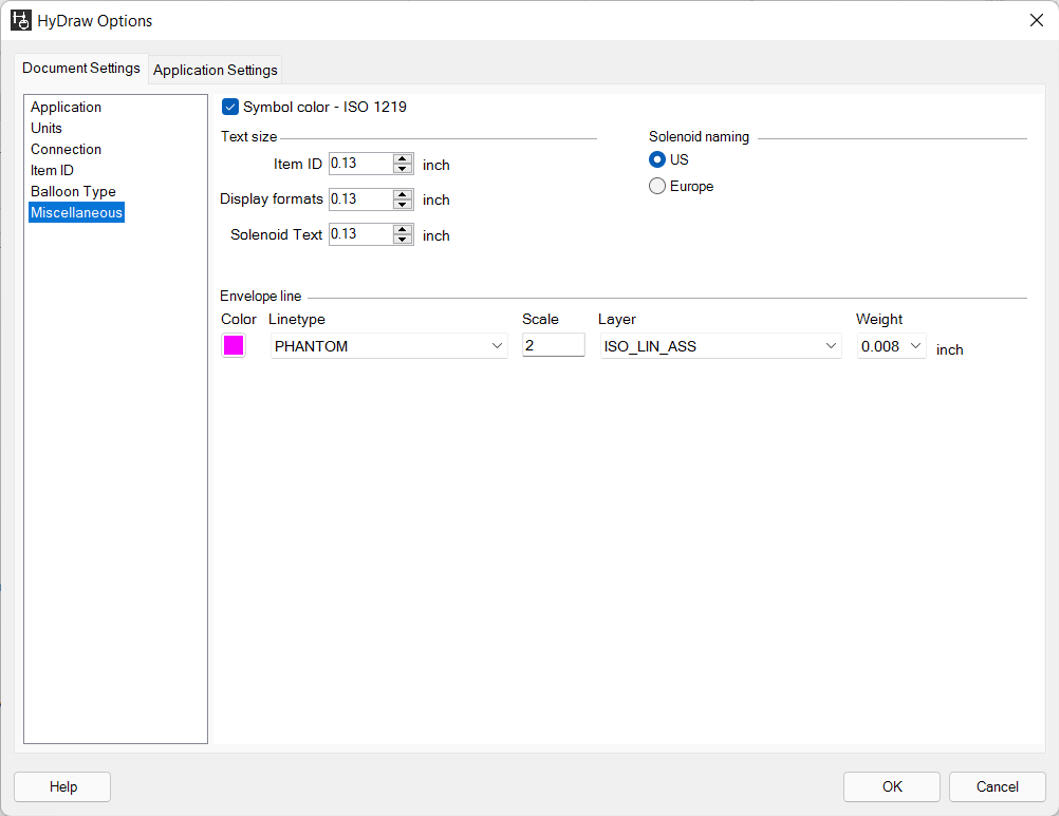

Click Document Settings > Miscellaneous to display the Miscellaneous tab page.

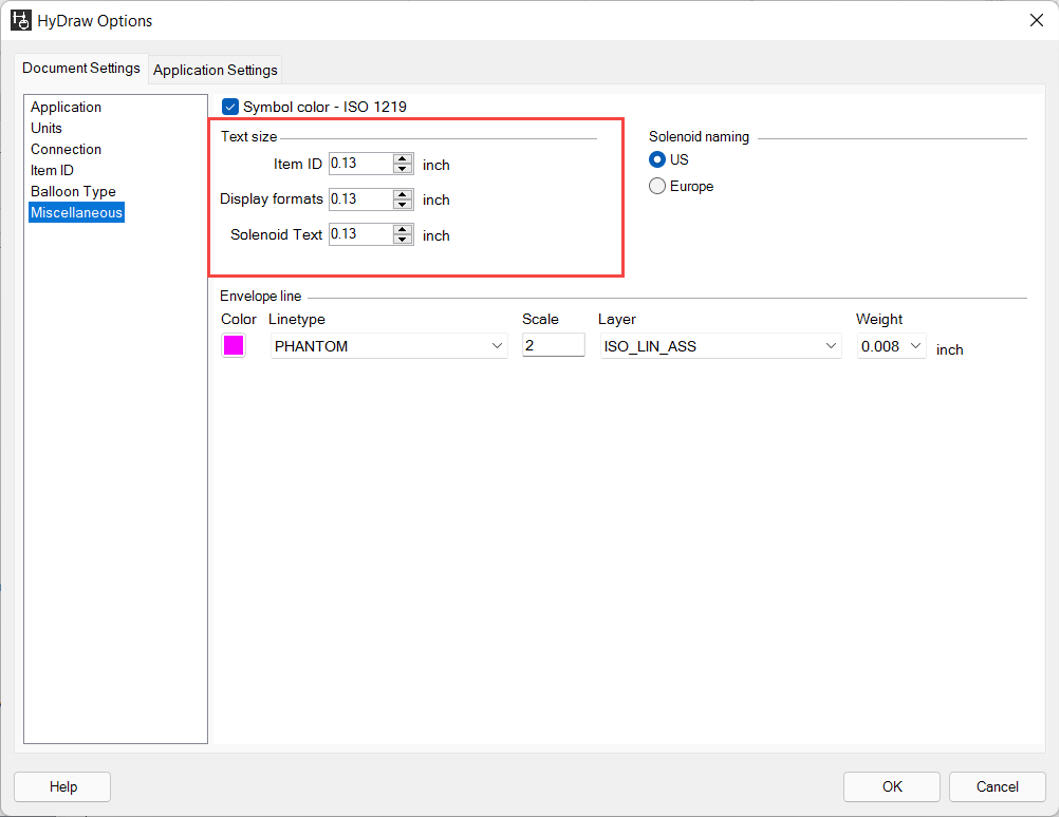

Miscellaneous tab - Text Size
1. In the Text size group box, select the appropriate text size from the respective list box for item ID and display properties.
2. Click OK to effect the changes to the properties in the drawing.
