Insert Symbol Port

Insert connection points on the ports of a symbol.

1.     Click Circuit > Insert Symbol port    on the HyDraw^® CAD ribbon menu.

The Select Symbol to Insert Port prompt displays.

2.     Select the symbol.

The Port Name: prompt displays.

3.     Enter the Port Name in the command window and press the Enter key.

The Other Name: prompt displays.

4.     Enter the other name in the command window, if required and press the Enter key.

The Specify Port Insertion Point: prompt displays.

5.     Specify the Port Insertion point on the symbol.

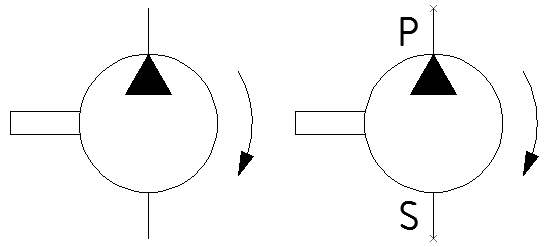

A small red cross appears at the point where the port is inserted.
