Customize Hose Assembly List Format

1.     Click Circuit > Options… on the HyDraw^® CAD ribbon menu.

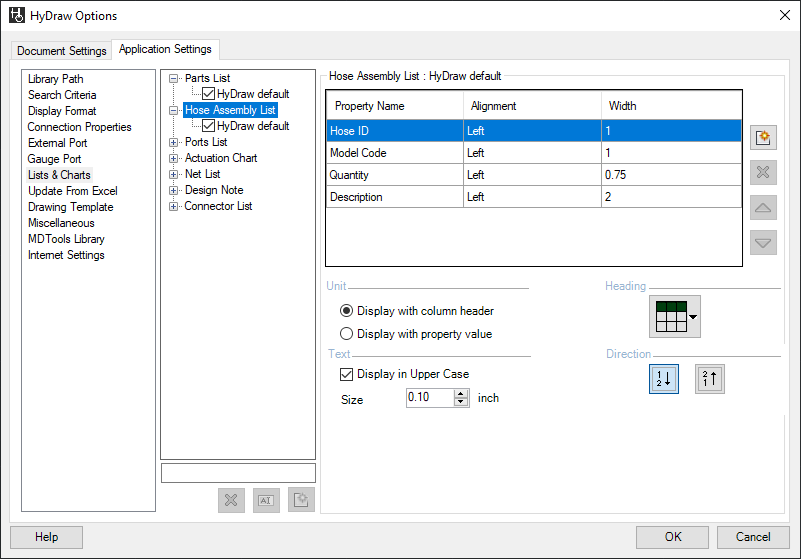

2.     Click the Application Settings > Lists & Charts tab and select Hose Assembly List.

The Hose Assembly list formatting box displays inside the tab.

3.  To rename a selected format, type the new name in the text box and click .

4.  To add a new format, type the new name in the text box and click  below the text box.

5.    To delete a selected format, click .

The Configure Columns section enables editing of the Display Name, Alignment, and Width of the columns.

6.   Click .

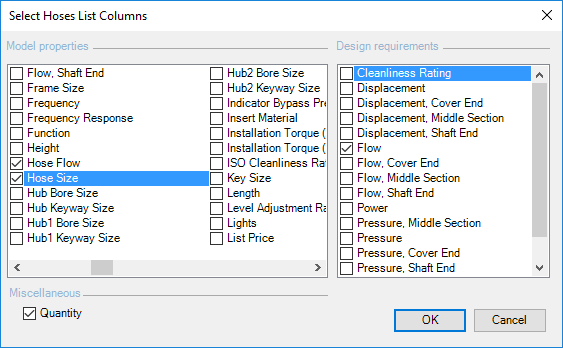

The Select Hose Assembly List columns dialog box displays.

7.    Select the required properties.

8.    Click OK.

The properties of the selected item are displayed in the Hose Assembly List formatting box in the Configure columns section.

Same properties are displayed in the tabular form Hose list, when creating the Hose Assembly list in the drawing.
