Show/Hide Properties

The properties toggle between display or hide in the drawing.

1.     Click System  >    on the HyDraw^® CAD ribbon menu.

The Select symbols and connections prompt displays.

2.     Select a single or multiple symbols, external ports, connection lines after completion of selection, press the Enter key.

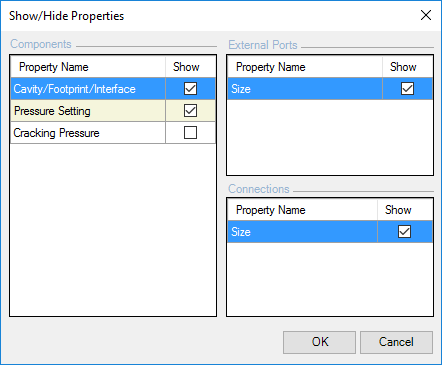

The Show/Hide Properties dialog box displays.

3.     Select the properties in the Group box: Components, External Ports and Connections.

4.     Click OK to apply and exit.

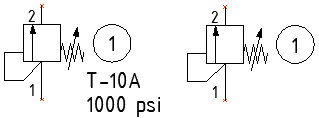

Hiding a Property
