Rotate Symbols

Rotate a symbol, 90 degrees to its left or right. The associated text is constrained to remain horizontal.

Rotate Left

1.     Click Circuit > Rotate Left  on the HyDraw^®  CAD ribbon menu.

The Select Symbols prompt displays.

2.     Select a single or multiple symbol.

3.     After selection, press the Enter key.

The symbol rotates 90 degrees to its left.

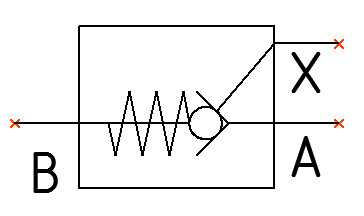

Rotate symbol to the left

Rotate Right

1.     Select a symbol

2.     Click Circuit > Rotate Right  on the HyDraw CAD ribbon menu.

The Select Symbols prompt displays.

3.     Select a single or multiple symbol.

4.     After selection, press the Enter key.

The symbol rotates 90 degrees to its right.

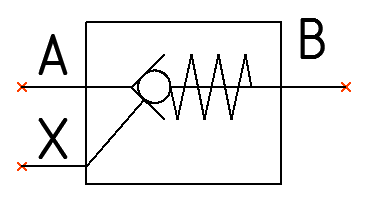

Rotate symbol to the right
