Rotate Property Text

Rotate the displayed text of the selected symbols and connections.

1.      Click System >   on the HyDraw^® CAD ribbon menu.

The Select Symbols and Connections prompt displays.

2.      Select a single symbol or multiple symbols and connections.

3.      After selection, press the Enter key.

The Rotate Property Text dialog box displays.

4.      Select the property you want to rotate.

5.      Click Rotate Left .

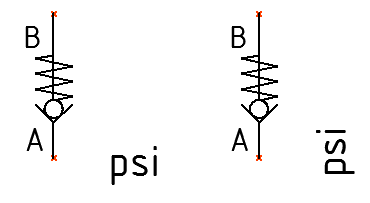

The Property Text rotates 90 degrees to its left.

6.      Click Rotate Right .

The Property Text rotates 90 degrees to its right.

7.      Click OK.

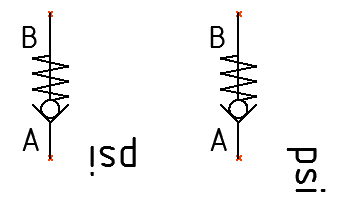

The property of the text is rotated.
