Reassign Item ID

Reassign the Item IDs and Assembly IDs of all symbols in the circuit after modification.

1.     Click System >  on the HyDraw^® CAD ribbon menu.

The Select Symbols prompt displays.

2.     Select a single symbol or multiple symbols.

3.     After completion of selection, press the Enter key.

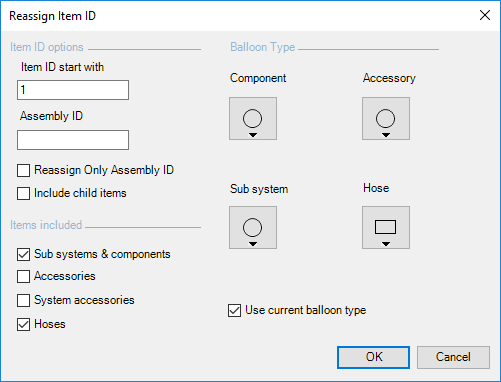

The Reassign Item ID dialog box displays.

4.     Enter the starting value of the Item ID.

5.     Enter the Assembly ID.

•     Select the Reassign Only Assembly ID check box, if you want to reassign only assembly ID.

•     Select the Include child items checkbox to include sub-systems child items.

6.     Choose the Balloon type for components, accessories, sub-systems and Hoses.

Select the checkbox, if you want to use the current balloon type.

7.     Select the appropriate option for Items included.

•     Select the Sub-Systems & Components checkbox to include all sub-systems and components.

•     Select the Component accessories checkbox to include all component accessories.

•     Select the System accessories checkbox to include all system accessories.

•     Deselect the Hoses checkbox to exclude hoses.

8.     Click OK.

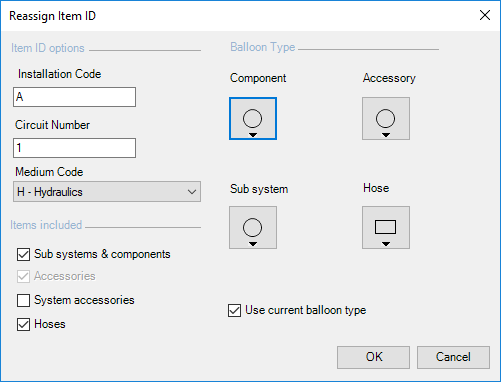

9.     For ISO 1219 Scheme, enter the Installation Code, Circuit Number and Medium Code.
