Reassign Hose ID

Reassign the Hose IDs of all symbols in the circuit after modification.

1.     Click System >  on the HyDraw^® CAD ribbon menu.

The Select Symbols prompt displays.

2.     Select a single symbol or multiple symbols.

Only hoses symbols will be included.

3.     After selection, press the Enter key.

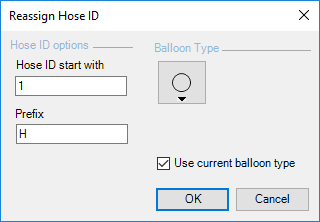

The Reassign Hose ID dialog box displays.

4.     Enter the starting value of the Hose ID.

5.     Enter Prefix.

6.     Choose Balloon Type.

Select the checkbox, if you want to use the current balloon type.

7.     Click OK.

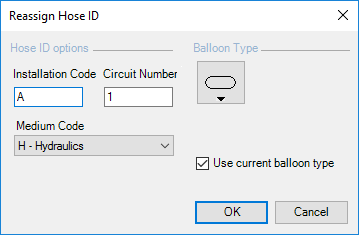

For ISO 1219 Scheme, enter the Installation Code, Circuit Number and Medium Code.
