Manage Sub-Systems

Create sub-systems from the building elements supplied along with the library.

1.     In the Sub-System library of HyDraw^® Library Explorer, browse to the required folder, where you want to add a new symbol.

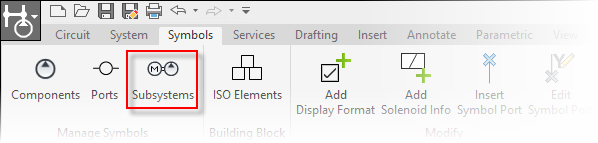

2.     Click Symbols  >  Sub Systems.

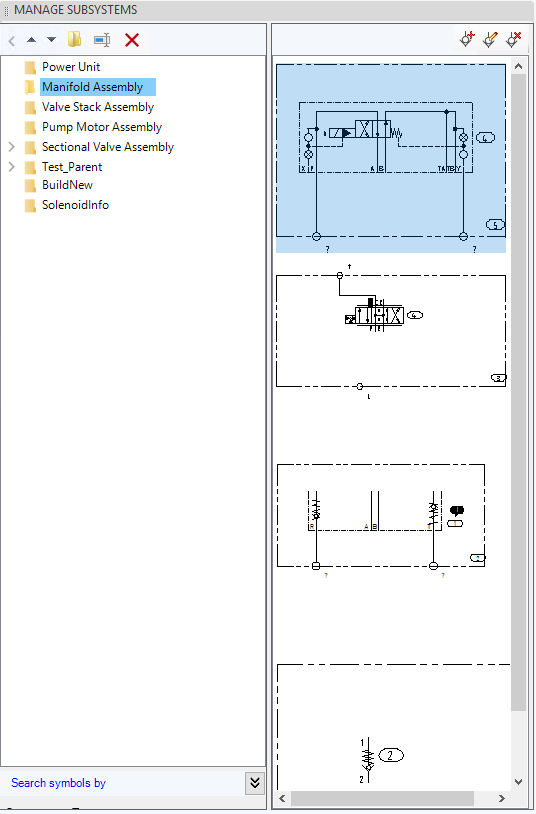

Manage Sub Systems dialog displays.

3.     Select the library and browse to the folder of symbols.

4.     Search for symbols with model code or component type.
