Insert Jumping Reference

Insert jumping reference to the unconnected end of a connection line.

1.     Click Circuit > Jumping Reference on the HyDraw^® CAD ribbon menu.

The Select connection line prompt displays.

2.     Select the unconnected end of a connection line.

A warning message box displays, if you select a non-free end connection line.

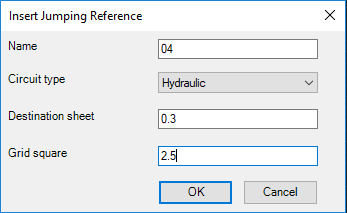

The Insert Jumping Reference dialog box displays.

3.     Enter the name of the jumping reference.

4.     Select the Circuit type from drop-down list, if the Use circuit type option is selected in the HyDraw Options > Connection > Jumping Reference.

5.      Enter the Destination sheet.

6.      Enter the Grid square, if the Use grid square option is selected in the HyDraw Options > Connection > Jumping Reference.

7.     Click OK.

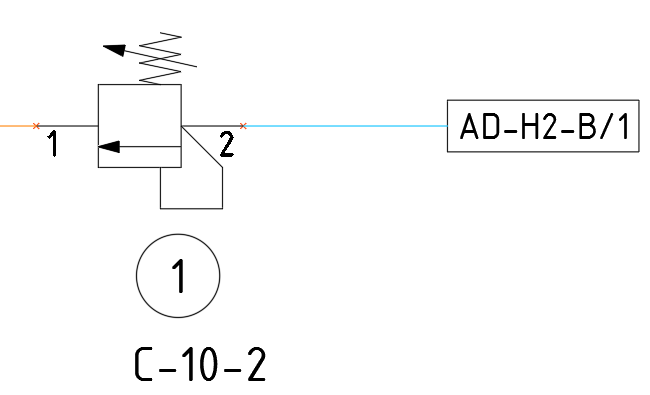

The jumping reference is automatically inserted vertically or horizontally on the unconnected end of a connection line.

Based on connection line segment, jumping reference is automatically inserted vertically or horizontally on the connection line.

Note:

You cannot create jumping reference with the same name for more than one pair of unconnected connection line.
