Shortcut command for HyDraw introduced for easy access from the command line.
Command Line HyDraw shortcuts or aliases
The predefined HyDraw shortcuts or aliase:
LICENSEINFO HyDraw CAD 2020 License Details
YL Library Explorer
YP Property Manager
YCP Pressure Connection Line
YCR Reservoir Connection Line
YCS Suction Connection Line
YCC Control Connection Line
YCD Drain Connection Line
YCW Working Connection Line

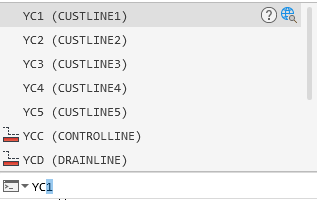

YC1 Custom Connection Line1
YC2 Custom Connection Line2
YC3 Custom Connection Line3
YC4 Custom Connection Line4
YC5 Custom Connection Line5
YE Insert Envelope
YG Insert Gauge Port
YM Match Connection Properties
YR Refresh Properties
YB Update Balloon
YI Assign Item ID
YPA Parts List
YPO Ports List
YN Net List
YO HyDraw Options
Also, add HyDraw Ribbon Menu commands to Quick Access toolbar.
