Flip a symbol horizontally or vertically. The associated text is constrained to remain horizontal.
Flip Horizontal

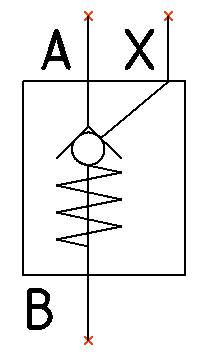

Symbol inserted in the drawing
1. Click
Circuit >
Flip
Horizontal from the Modify Symbol option on the HyDraw® CAD ribbon
menu.
The Select Symbols command displays.
2. Select a single or multiple symbol.
3. After selection, press the Enter key.
The symbol flips horizontally.
Flip Vertical
Symbol inserted in the drawing
1. Click
Circuit >
Flip
Vertical from the Modify Symbol option on the HyDraw CAD ribbon
menu.
The Select Symbols command displays.
2. Select a single or multiple symbol.
3. After selection, press the Enter key.

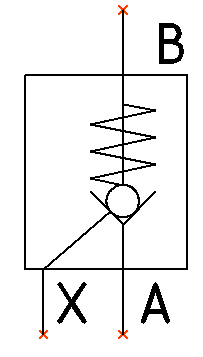

The symbol flips vertically.
