Edit Symbol Port

Edit the port name of the selected symbol in the drawing. It does not affect the master symbol in the HyDraw^® library.

1.     Click Circuit > Edit Symbol Port   on the HyDraw CAD ribbon menu.

The Select Symbol prompt displays.

2.     Select the symbol port to be renamed.

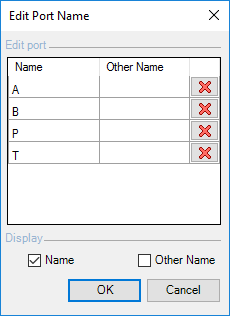

The Edit Port Name dialog box displays.

3.     Type the new name in the Name column and the optional Other Name column.

4.     To delete the port, click .

5.     Select Name/Other Name in the Display option.

6.     Click OK.

The name or the other name of the port displays with the symbol.

If both the names are selected, then dual port names are displayed.

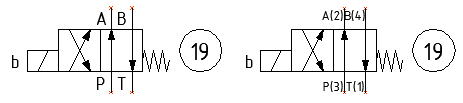

Symbol with unedited ports                             Symbol with Dual port names

Note:

The changes affect only the symbol in the drawing and not the master symbol in the HyDraw library.
