Edit various properties of a symbol, external port,
envelope line, connection line and sub-system.
HyDraw®
Property Manager displays properties that can be added and modified.
1. Click
Circuit >
on the HyDraw CAD ribbon menu.

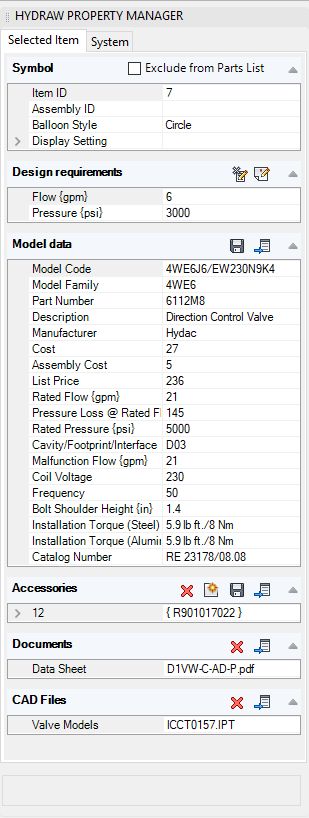

The HyDraw Property Manager window displays.
2. Edit the required properties of a symbol.

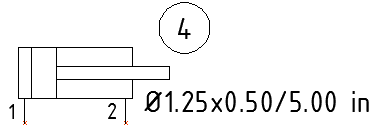

The Display Setting can display multiple properties, if already defined in the Library Manager.

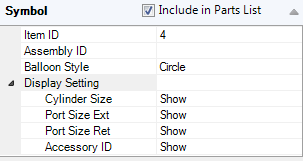

HyDraw Property Manager - Display Settings
