Delete a symbol from the drawing.
1. Click
Circuit > Delete
on
the HyDraw®
CAD ribbon menu.
The Select Symbols prompt displays.

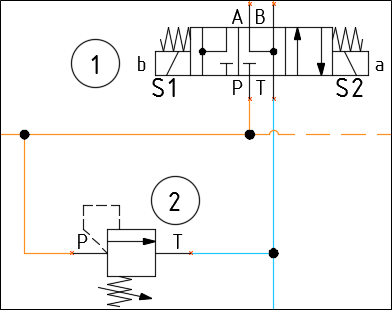

2. Select a single symbol or multiple symbols to delete.
3. After selection, press the Enter key.

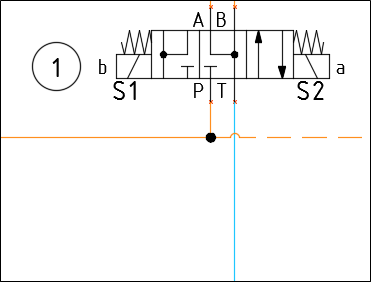

The selected symbols and the connections are deleted.
