Copy Properties

Copy component data, design requirements, accessories and linked data properties from one component symbol to another component symbol of the same category.
Copy the properties of external ports and envelope data.

Also, copy sub-system data, design requirements, accessories and linked data properties from one sub-system to another sub-system of the same category.

1.     Click  on the HyDraw^® CAD ribbon menu.

The Select Source Symbol prompt displays.

2.     Select the source symbol.

The Select Destination Symbols prompt displays.

3.     Select a single or multiple destination symbols.

4.     After selection, press the Enter key.

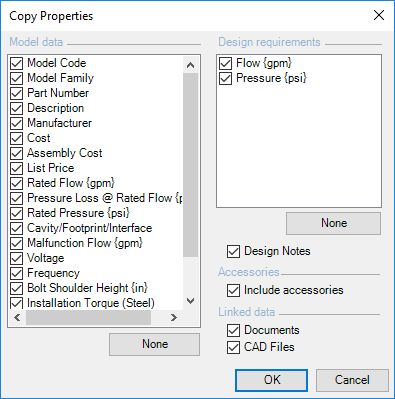

The Copy Properties dialog box displays.

5.     Select the required design requirements to copy from the Design requirements checklist box.

6.   Select the Design Notes check box to copy the design notes to the destination symbol.

7.     Select the Include accessories check box to copy the accessories to the destination symbol.

8.   Select Linked data option, such as Documents CAD Files to copy the linked documents and CAD files to the destination symbol.

9.     Click OK.

The properties are copied to the destination symbol(s).
