Change Text Height

Change the text height of the displayed Item ID and other parameters of the selected symbols.

1.     Click System  >  icon on the HyDraw^® CAD ribbon menu.

The Select Symbols and connections prompt displays on the command window.

2.     Select a single symbol or multiple symbols, and connections.

3.     After completion of selection, press the Enter key.

The Specify items to update [Item ID/ Property Text/ Solenoid Text/ Hose ID/ All] < All> prompt displays.

4.     Enter the items to be updated and press the Enter key.

5.     Select Item ID/property text/solenoid text/Hose ID/All.

The Change text height to <value>: prompt displays.

6.  Enter the text height value and press the Enter key.

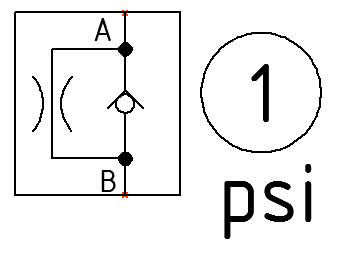

The height of the text is changed.

Note:

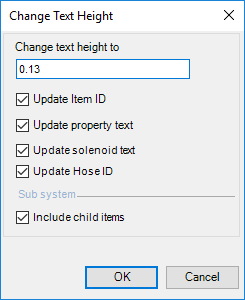

The Change Text Height dialog box displays when Show options on Command Line option is deselected in HyDraw Options > Misc > Command Options.
