on the HyDraw® CAD ribbon menu.Align multiple symbols with another symbol, horizontally or vertically, from left, right, or middle.
1. Click
Circuit > Align
Symbols on the HyDraw® CAD ribbon menu.
The Select Symbols to Move prompt displays.
2. Select a single symbol or multiple symbols.
3. After selection, press the Enter key.
The Select Symbol to Align With prompt displays.
4. Select the symbol.
The Align [Tops/Middles/ Bottoms/ Lefts/ Centers/ Rights] prompt displays.
Align dialog opens if the Show Options on Command Line option is selected in Option.
5. On click of any button, preview of alignment between two symbols is displayed accordingly.

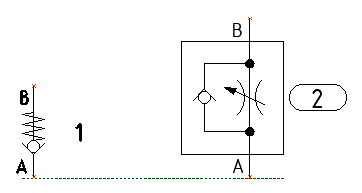

Symbols aligned preview from bottom

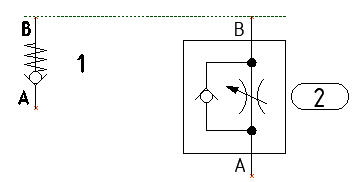

Symbols aligned preview from top

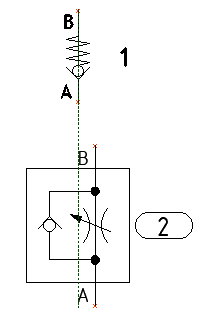

Symbols aligned preview from center

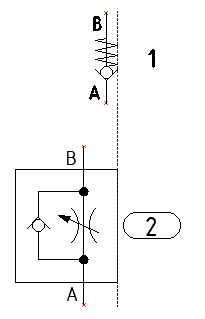

Symbols aligned preview from right

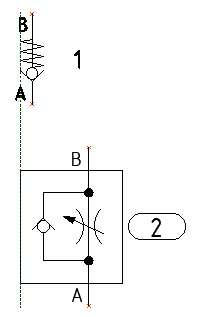

Symbols aligned from left

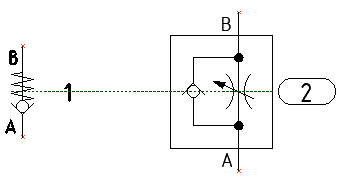

Symbols aligned from middle
6. Select the required alignment and press the Enter key.
The symbols are aligned with the selected symbol accordingly.
Symbols aligned from bottom
Symbols aligned from top
Symbols aligned from center
Symbols aligned from right
Symbols aligned from left
Symbols aligned from middle
