Add Solenoid Information

Add solenoid information while creating symbols and editing symbols.

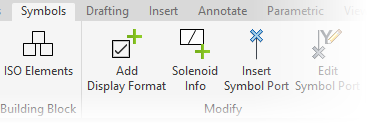

1.     Click Symbols  >  Add Solenoid info from the ribbon menu.

2.     Enter Solenoid ID.

3.     Click the position to insert the solenoid ID and function.

 Change the position, if required.

Note

•       To delete the earlier solenoid format from drawing space, select and use delete button from keyboard.

•       Copy and paste the solenoid ID and function to create a new ID and function.
