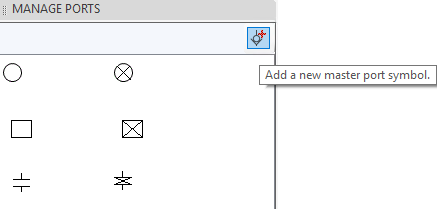

Add newly designed or modified external ports into the HyDraw® Symbol library.
1. In the Manage Ports dialog, browse to the required folder, where you want to add a new symbol.
2. Click Symbol > Manage Symbol.

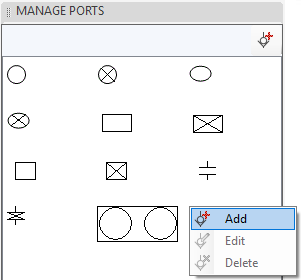

3. Select the Add button.
4. Select the symbol to be inserted.
5. Specify the Insertion point.
6. Specify plugged port/open port.
7. Press Enter/Tab.
The symbol is inserted into the library.
Note:
The symbols should have minimum of one connection point.
